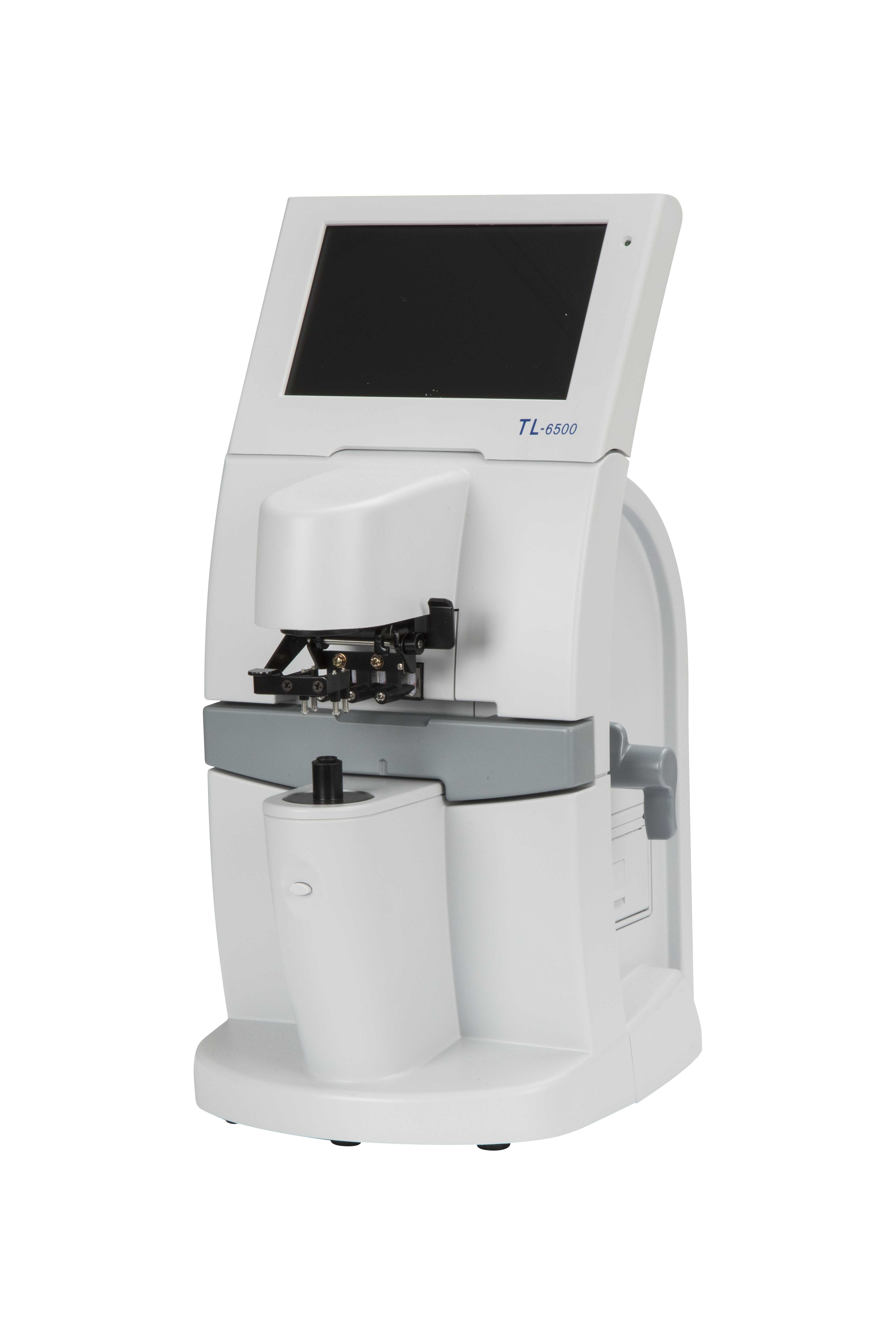

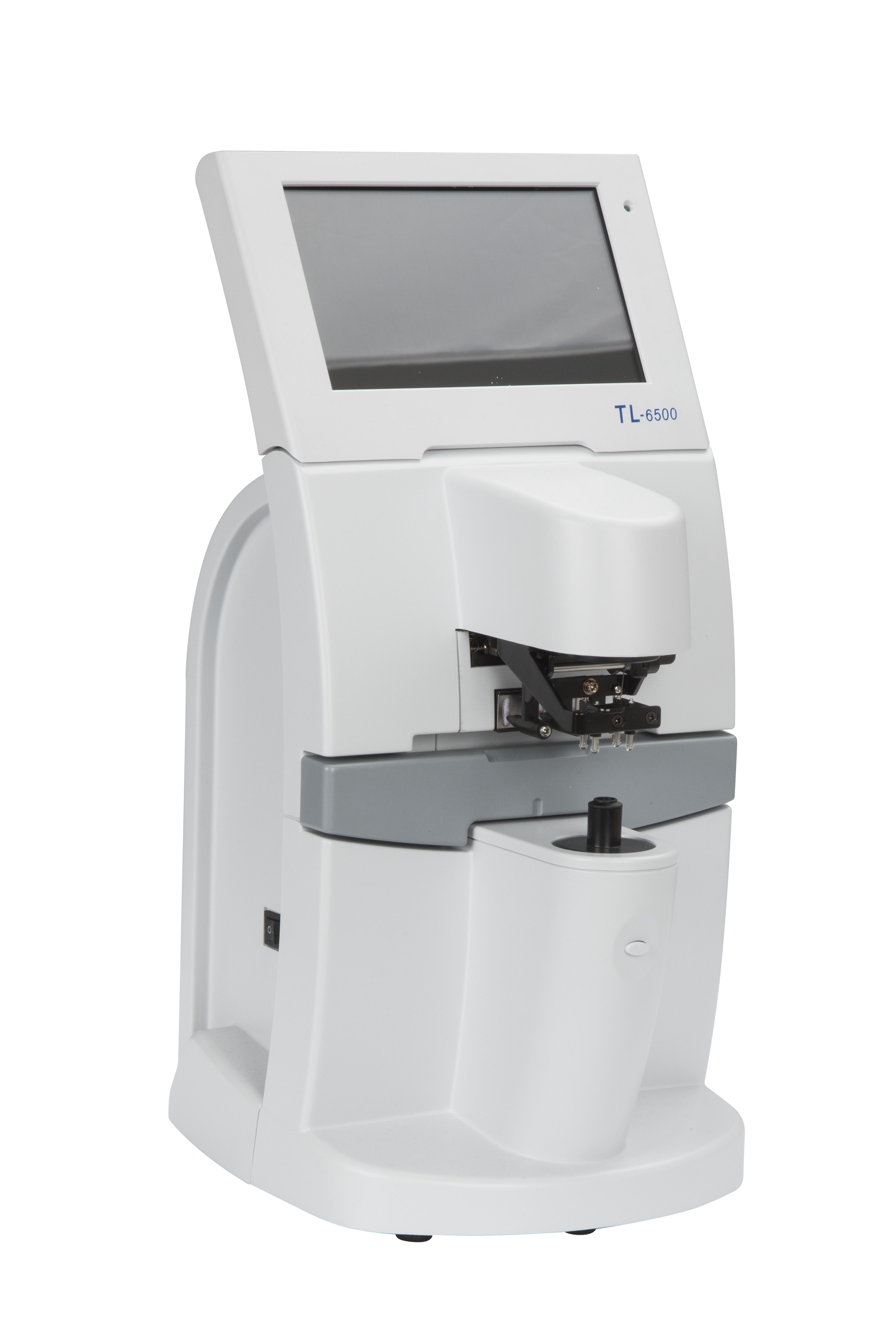

TL-6500 Technical Sheet
| Sphere | : | -25.00~+25D(steps 0.01/0.06/0.12/0.25D ) |
| Cylinder | : | -9.99~+9.99D(steps 0.01/0.06/0.12/0.25D ) |
| Axis | : | 0° ~180°(steps :1°) |
| Addition | : | 0-10 D(steps 0.01/0.06/0.12/0.25D ) |
| Prism degree | : | 0~20Δ(steps 0.01/0.06/0.12/0.25Δ) |
| Measurable lens diameter | : | Ø 10 to 90 mm |
| Cylinder | : | +,MIX, – |
| Prism | : | X-Y, P-B |
| PD measurement | : |
20-45mm(monocular)Single vison PD, Progressive lens far vision PD |
| Wavelength/Measuring point | : | 535nm(green)/108 within nosepiece |
| Printer | : | Thermal Printer |
| Dimensions | : | 255(W)*224(D)*434(D)MM |
| Weight | : | 5.5kg/7kg |
| Power supply | : | 220V -110V (50/60Hz) |
