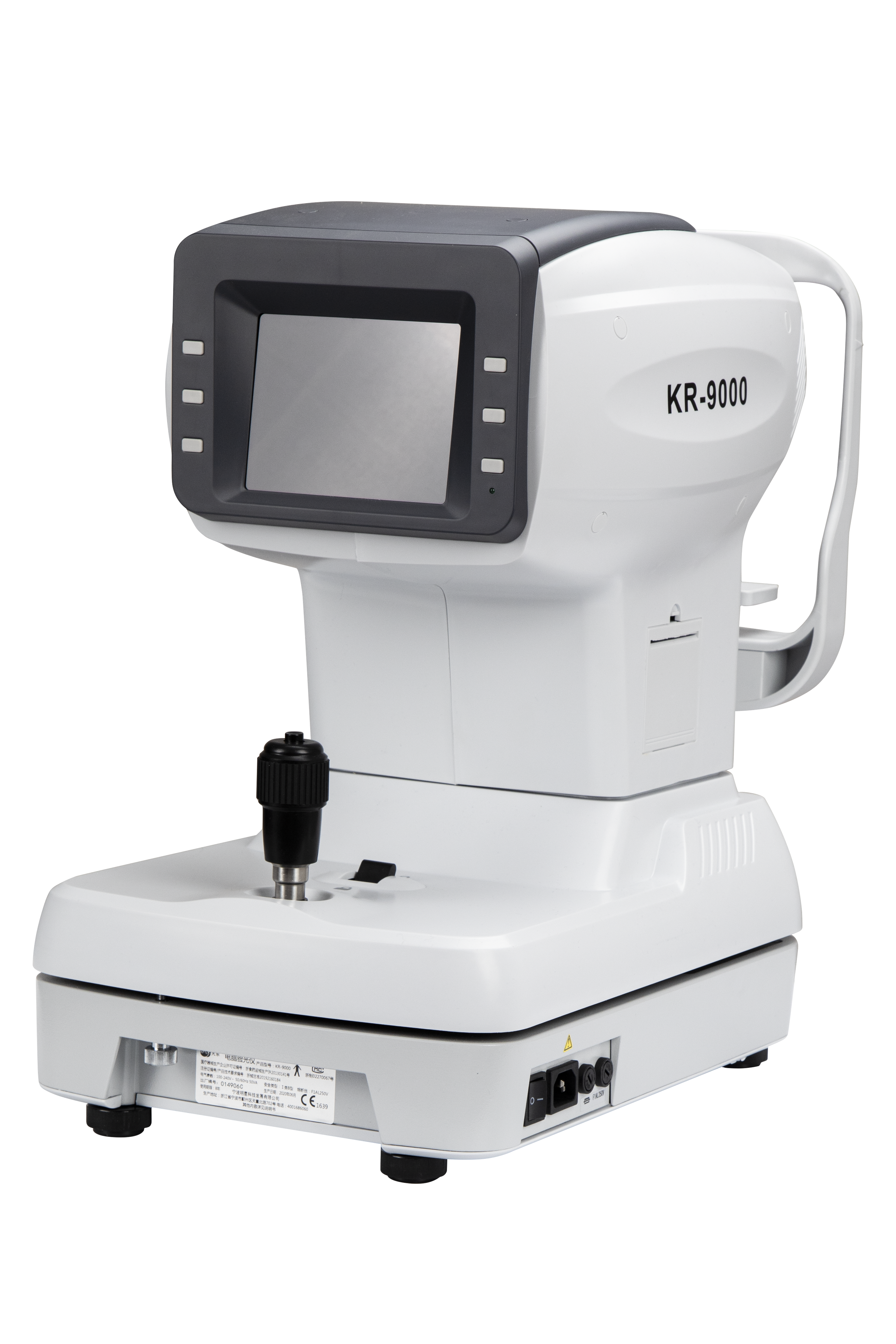

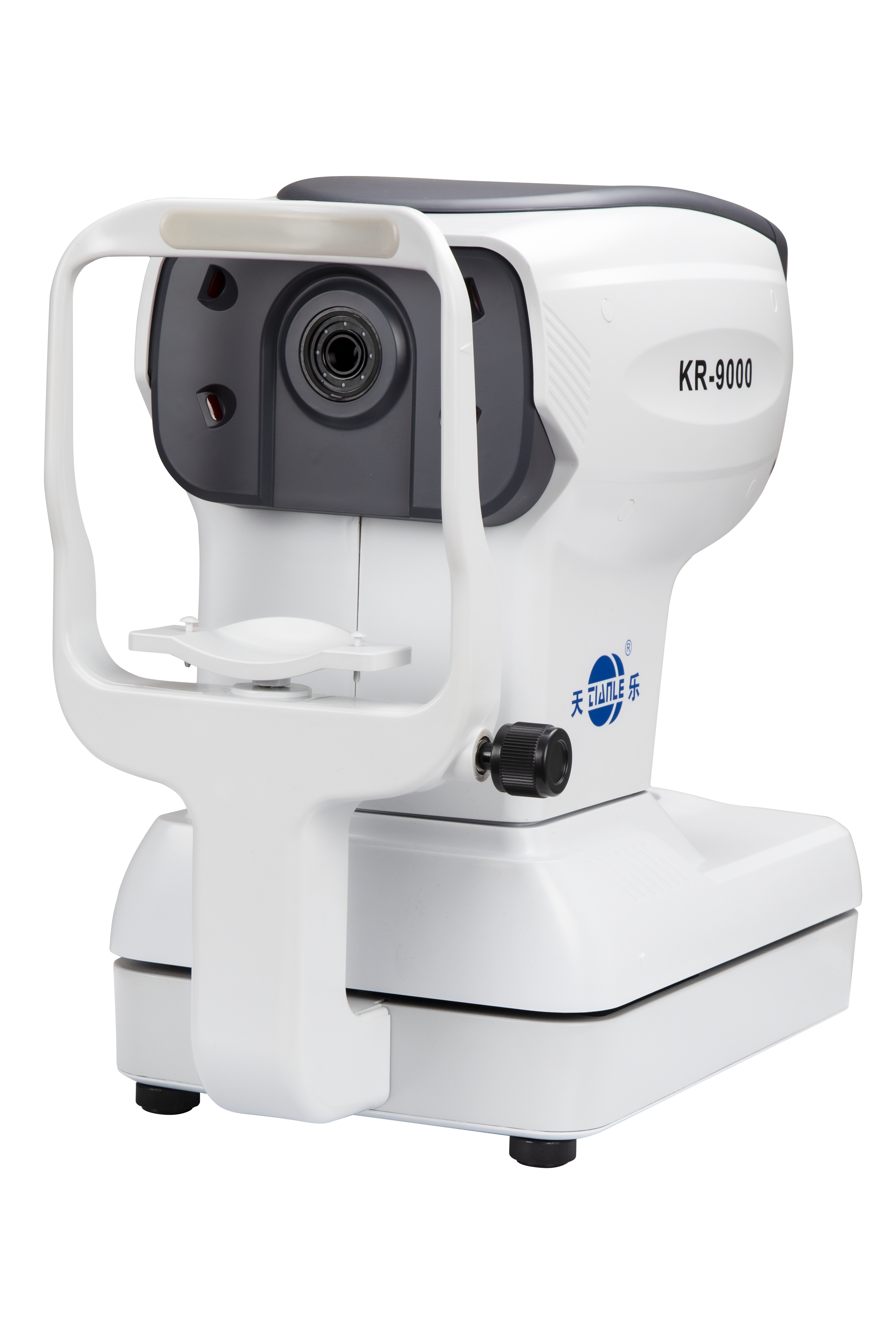

KR-9000 technical sheet
Refractive measurement
| Vertex Distance（VD） | : | 0.0，12.0，13.75，15.0mm |
| Sphere | : | :-20.00 ~ +20.00D（0.12/0.25D step）(VD=12mm） |
| Cylinder | : |
0.00 ~ ±10.00D（0.12/0.25Dstep） |
| Axis | 1° ~ 180°（step 1°） | |
| Pupil distance |
30 ~ 85mm |
|
| Min.pupil diameter measurable |
φ2.0mm |
|
| Target | Automatic fogging target | |
|
Corneal curvature measurement |
||
| Radius of curvature | 5~10mm（0.001mm step） | |
| Corneal refraction | 33.75~67.50D（0.12/0.25D step） | |
| Corneal Astigmatism | 0.00~-15.00D（0.12/0.25D step） | |
| Angel of cornea | 1°~180°（step 1°） | |
| Corneal diameter |
2.0~12.00mm |
|
| Hardware specification | ||
| Monitor | 5.7inch color LCD | |
| Printer |
Fast thermal printer |
|
| Power saving function | OFF, 5/15mins(select able) | |
| Power supply | AC100~240V，50/60Hz | |
| Dimensions/weight | 288（W）*500（D）*480（H）mm/14Kg |
